Besseling Nitrogen

PSA Nitrogen Generator

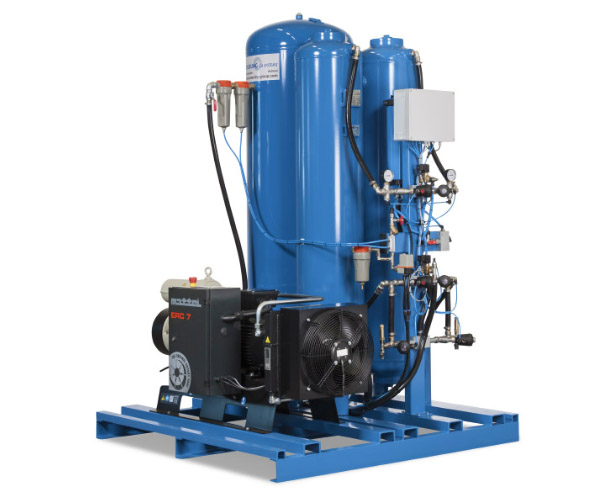

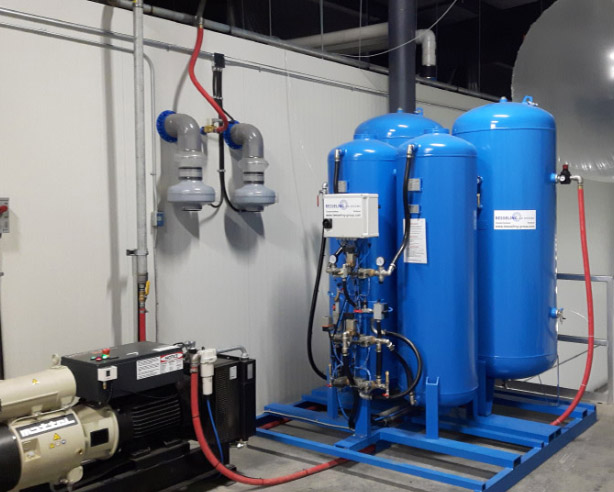

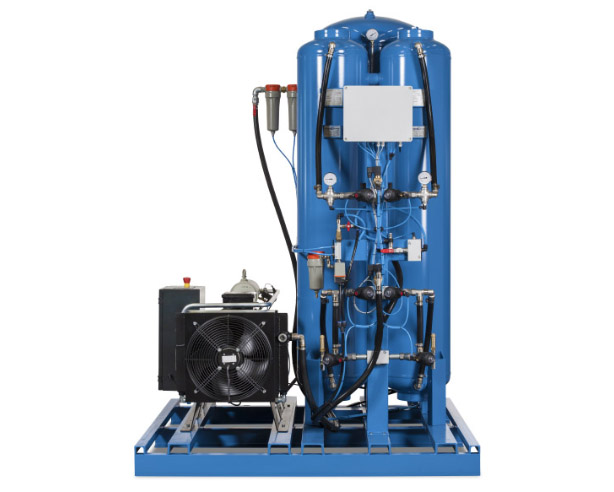

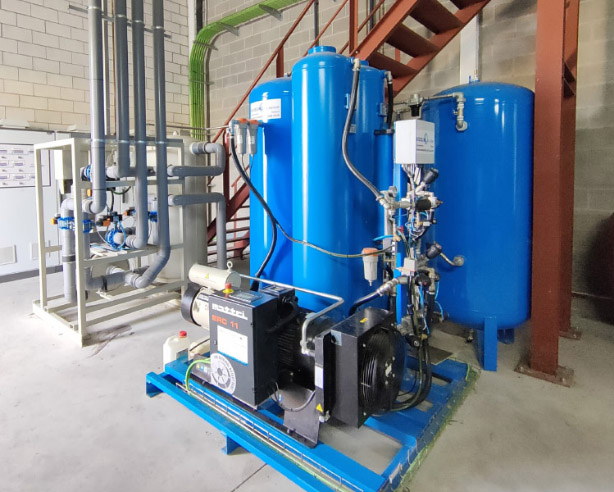

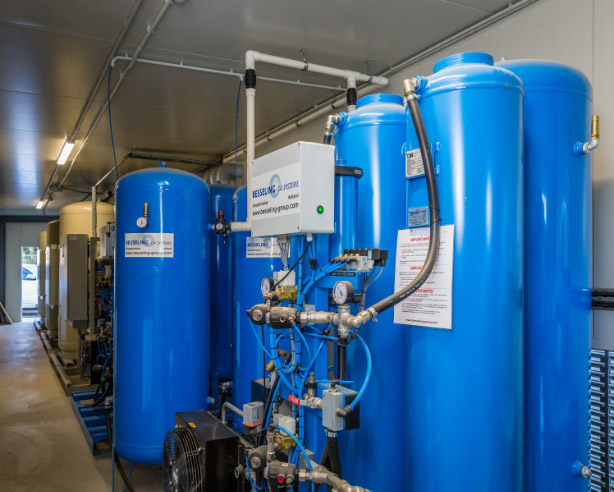

The Besseling nitrogen generator extracts nitrogen from ambient air by applying the Pressure Swing Adsorption (PSA) technology. The Besseling N₂-generator comprises two vessels filled with a high-grade CMS (Carbon Molecular Sieve), an air compressor, compressed air tank and the necessary filters.

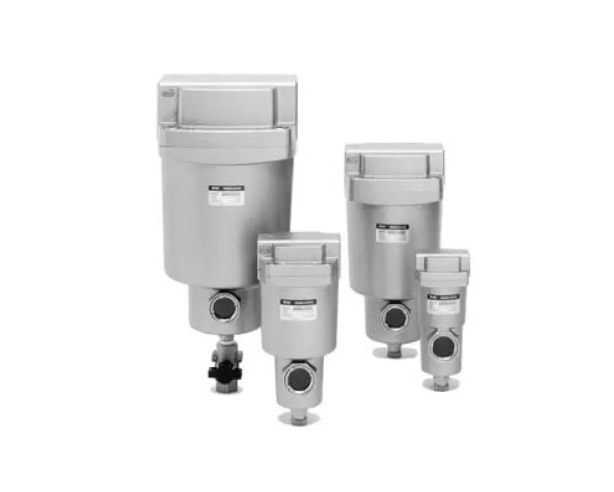

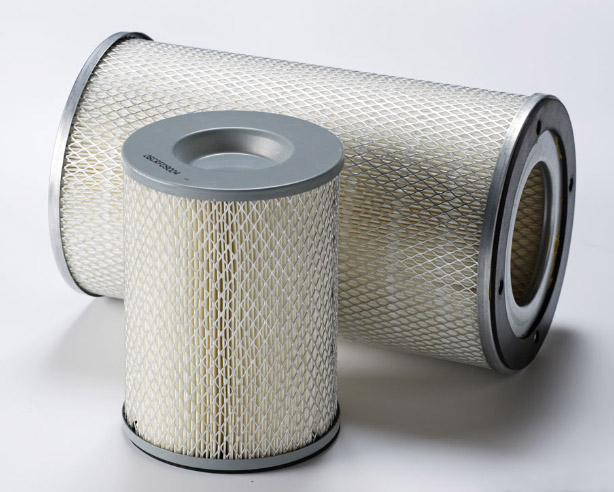

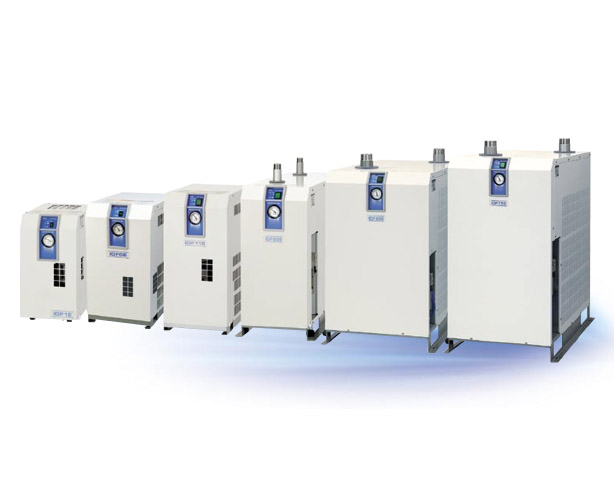

First step in the process is the treatment of pressed air. We remove all pollution and moisture in the air. The purified air is then directed to one of two adsorption vessels that are packed with carbon molecular sieves (CMS).

A CMS is capable of adsorbing oxygen molecules for a particular length of time. The remaining of the air, which is nitrogen is leaving the adsorption vessel. When saturation is reached, the system automatically switches to the other vessel by means of valves. The saturated vessel is prepared for the next cycle by depressurizing it, after which the adsorbed oxygen molecules are released and purged through the outlet. Thanks to this simple principle, the reliability and lifespan of the PSA nitrogen generator is extremely high.

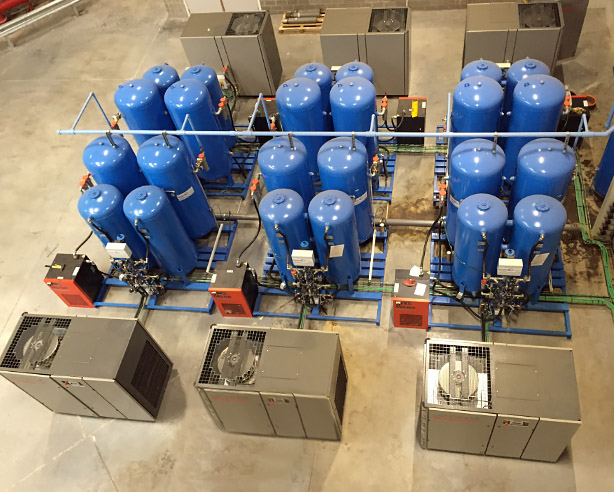

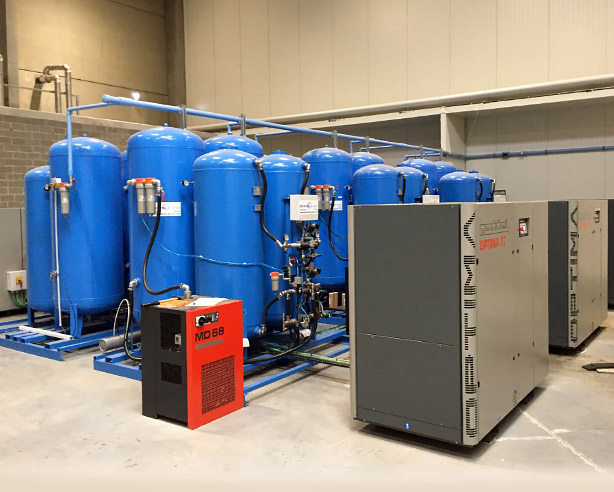

Besseling offers multiple capacities / purities of PSA nitrogen generators.
